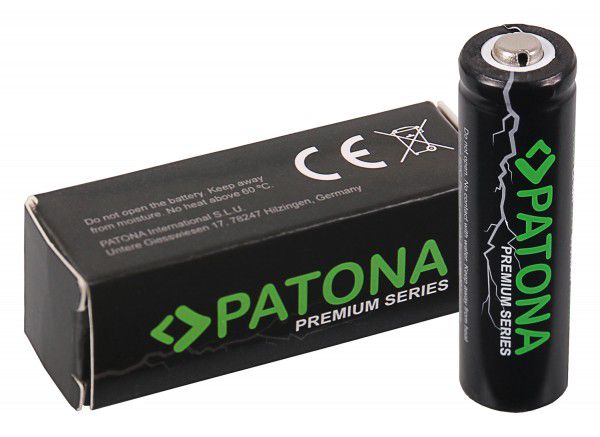

Akumuliatorius su iškilusiu + 14500 3.7V 800mAh 1.5A Li-Ion be PCM apsaugos PATONA

Suderinama su: visais įrenginiais, kuriuose reikalinga 14500 baterija, pvz., namų ūkyje, modelių gamyboje, sode ir laisvalaikio sektoriuje ir kt.

Techniniai duomenys:

Pavadinimas: 14500 Li-Ion

Tipas: ICR14500

Talpa: 800 mAh

Nominalusis įtampa: 3,7 V

Įkrovimo įtampa: 4,2 V ± 0,02 V

Iškrovimo įtampa: 2,75V

Maksimali įkrovimo srovė: 1500 mA

Skersmuo: 14,3 ± 0,2 mm

Skersmuo : 7,3 mm

Aukštis: 50,5,0 mm

Svoris: 20,0 g

Darbinė temperatūra: įkrovimas 0–45 °C, iškrovimas –20–50 °C

Įkraunama: taip

Įkrovimo ciklai: 400

Prekės ženklas: PATONA Premium

Saugos instrukcijos:

- Akumuliatorių įkraukite tik 14500 elementams skirtais įkrovikliais. Prieš naudodami 14500 įkroviklį, perskaitykite jo aprašymą ir susipažinkite su įkrovimo būdu.

- Baterijoje nėra įmontuota PCM apsauga. Visada naudokite apsauginę plokštę (PCB), kad apsaugotumėte bateriją nuo perkaitimo ir per didelio išsikrovimo.

- Ličio elementai gali būti naudojami tik su apsaugine elektronika ir apdorojami kvalifikuotų specialistų.

- Nesukelkite baterijų trumpojo jungimo ir giliai neiškraukite.

compatible to: all devices in which a 14500 cell is required, e.g. in the household, in model making, in the garden and leisure sector etc.

Technical Data:
Appellation: 14500 Li-Ion
Type: ICR14500
Capacity: 800mAh
Nominal voltage: 3,7V
Charge voltage: 4,2V ± 0.02V
Discharge voltage: 2.75
Maximum charge current: 1500mA
Diameter: 14.3 ± 0.2mm
Diameter Pol: 7.3mm
Height: 50.5.0mm
Weight: 20.0g
Operating temperature: Charge 0-45°C, Discharge -20-50°C
Rechargeable: Yes
Charging cycles: 400
Brand: PATONA Premium

Safety instructions:
- Please use only chargers specified for 14500 Cells to charge the battery. Read the description of the 14500 charger and understand the charging method before usage.
- The battery is an unprotected flat-top version. You should always use a protection circuit board (PCB) to protect the battery from overcharging and excessive discharging.
- Lithium cells may only be operated with protective electronics and processed by qualified specialist personnel.
- Do not short-circuit and deeply discharge the batteries

Things to know: The batteries of the PATONA brand have been known for many years for their very good quality. Customers all over Europe are convinced of our batteries with the highest cycle stability and emphasize the associated high number of possible charging and discharging cycles. This Li-Ion battery replaces the Panasonic AG-VBR89G and features low self-discharge even when not in use. This low energy loss pays off in three ways, because: 1) the battery can be used again quickly even when not in use for a long time 2) it does not have to be charged unnecessarily often, which influences the service life of the battery upwards and 3) the environment is also protected thanks to the minimal energy loss The claim of the PATONA brand is a high standard of quality. Of course, this also includes extraordinary safety standards. The perfectly compatible replica batteries naturally include all the electronic safety precautions of the original batteries and meet the highest European quality standards. PATONA always offers top quality at fair prices. Even the brand's new premium series can be purchased at affordable prices.

Pictures are only for illustration purposes - delivery may vary. Offered is a product of the quality brand PATONA.
