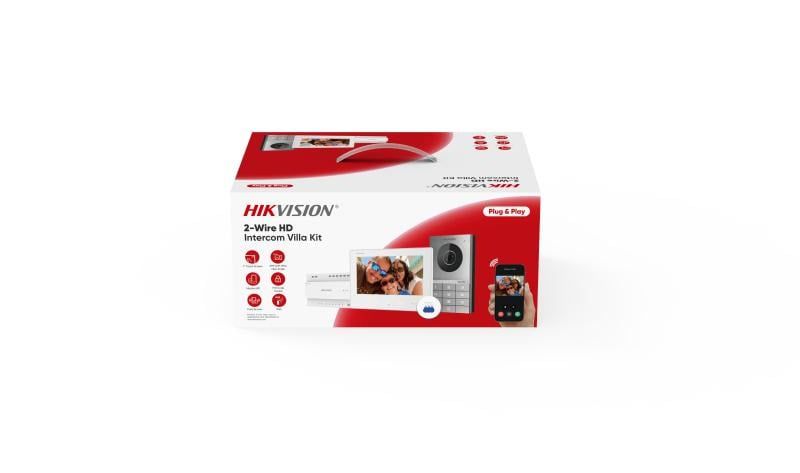

Hikvision 2-Wire Intercom Kit DS-KIS706EY
Specifikacijos
Tiekėjo prekės aprašymas
- Great image quality of 2 MP resolution
- One-press to call, remote unlocking with App control
- Real plug&play
- IP65 water resistant and IK08 vandal resistant entry panel
- 7-inch touch screen indoor monitor, user friendly interface
- Support PIN code to open the door
- Door station/Audio parameters
- Audio compression bitrate64 Kps
- Audio compression standardG.711 U, G.726
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Door station/Capacity parameters
- Linked indoor station capacityMax.400
- Sub door station capacity16
- Door station/Device interfaces
- Alarm input2（supports Exit button or Door contact input）
- DIP Switch6 decimal DIP switch
- Debugging port1
- Door contact input1
- Exit button1
- Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Power supply input12VDC input
- RS-4851
- TAMPER1
- Two-Wire1
- Door station/General
- Application environmentOutdoor
- Button12
- Dimension (W × H × D)165mm × 95 mm × 25 mm(6.5" × 3.7" × 0.98")
- Indicator4 LED lights(Opening door、Calling、Intercom、In use）
- InstallationSurface mounting
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Power consumption≤ 6 W
- Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
- Protective levelIP65 IK08
- Working humidity10% to 90%
- Working temperature-40° C to 60° C (-22° F to 140° F)
- Door station/Network parameters
- Wi-FiOnly AP mode for configuration
- Wireless network10/100 Mbps self-adaptive through 2-wire interface
- Door station/Screen parameters
- Operation methodNA
- ResolutionNA
- Screen sizeNA
- TypeNA
- Door station/System parameters
- Operation systemEmbedded Linux operation system
- ProcessorEmbedded Processor
- RAM256 MB
- ROM4 GB
- Door station/Video parameters
- FOVHorizontal: 135°, Vertical: 85°
- Lens1
- Resolution2MP
- Supplement lightSupplement light Low illumination, IR supplement lights
- Video compression standardH.264
- Wide dynamic range (WDR)Support
- Indoor station/Audio parameters
- Audio compression bitrate64 Kbps
- Audio compression standardG.711 U, G.711 A
- Audio input1 Built-in omnidirectional microphone
- Audio output1 Buit-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Indoor station/Capacity parameters
- Linked indoor extensions capacity3
- Notice capacity200 captured pictures (with TF card)
- Indoor station/Device interfaces
- Alarm input1
- Alarm output/
- DIP switch5 decimal DIP switch and 4 binary DIP switch
- Power supply input48V，powered by DS-KAD7060EY or DS-KAD7061EY
- RS-485/
- TAMPER/
- TF cardMax to 128 G, SD 2.0 or lower version
- Two-Wire2, 1 for input 1 for output
- USB/
- Indoor station/Display parameters
- Operatiing methodCapacitive touch screen
- Screen size7-inch
- TypeColorful TFT screen
- Indoor station/General
- Application environmentIndoor
- Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- Dimension (W × H × D)190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
- InstallationSurface mounting
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Power consumption≤ 5 W
- Power supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
- Protective level/
- Working humidity10% to 90% (no-condensing)
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Indoor station/Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wired network Two-wire network
- Wireless network2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- ProcessorEmbedded processor
- RAM32 MB
- ROM128 MB
- Indoor station/Video parameter
- FOV /
- Lens/
- Resolution1024 × 600
- Video compression standard/
- Wide dynamic range (WDR)/
- Video Audio Distributor/General
- Dimension (W × H × D)143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
- Indicators6 Signal indicators;1 Power indicator
- InstallationDIN rail installation
- Power consumptionCH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
- Power supply48VDC
- Working humidity10% to 90% (no-condensing)
- Working temperature-10 °C to 5 °C (14 °F to 131 °F)
- Video Audio Distributor/Interfaces
- Power interface48VDC
- Two-wire interface6("IN""OUT" for casacading, CH1-CH4 for Door station and Indoor station)
