Prekės aprašymas

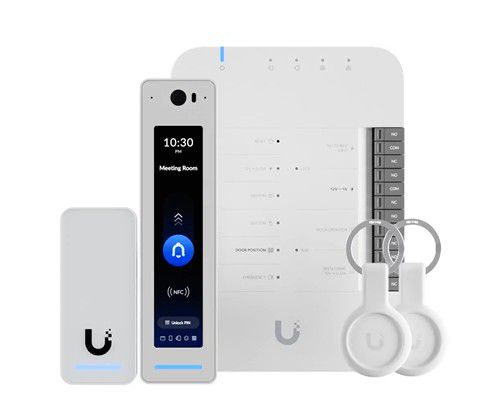

Intercom set Ubiquiti UniFi UA-G3-SK-Pro
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Door intercom kit
- Brand: Ubiquiti
- Model: UA-G3-SK-Pro
- Includes: Door hub, G3 Reader Pro, G3 Reader Entry/Exit, 2x keyfobs
- Power supply: PoE++, 50V DC, 1A
- PoE passthrough: Yes
- PoE ports: 4x PoE, 20W each
- Operating temperature: 0...40°C
- General
- UA-Hub-Door
- Dimensions174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Weight363 g (12.8 oz)
- Enclosure materialPolycarbonate
- Mounting materialPolycarbonate
- Networking interface(5) 10/100/1000 Base-T
- Power methodPoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Max. power consumptionWithout PoE output: 30W, With PoE output: 50W
- PoE input50V DC, 1A
- PoE outputPoE passthrough, (4) PoE, 50V DC, total 20W
- LEDsWhite/blue
- Button(1) Factory-reset
- Digital inputRequest to exit/request to enter/remote release/door position sensor
- Dry output relayLock: 30V DC, 1A, Aux: 30V DC, 1A
- Powered output relayLock: 12V DC, 1A, Aux: 12V DC, 0.33A, 12V DC, 0.33A
- Operating environmentIndoor use only
- Ambient operating temperature0 to 40° C (32 to 104° F)
- Ambient operating humidity5 to 95% noncondensing
- UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 statementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the National Electrical Code, ANSI/NFPA 70, Article 725.121.
- CAN/ULC-60839-11-1 GradeGrade assignment: 1
- CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Wiring InformationUACC-Cable-DoorLockRelay (18 AWG) is recommended. Minimum conductor gauge for PoE is 24 AWG (0.21 mm²) for horizontal or riser cable.
- UA-G3-Pro
- Dimensions160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- Weight136 g (4.8 oz)
- Enclosure materialPolycarbonate, glass
- Mount materialAluminum alloy
- MountingWall mount (Included), Gangbox mount (Included), Angle mount (Optional), Junction box (Optional)
- WeatherproofingIP55
- Networking interface(1) GbE RJ45 port
- ConnectivityBLE 4.2, NFC
- Power methodPoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range48V DC
- Max. power consumption6W
- ESD/EMP protectionAir: ±15kV, contact: ±8kV
- SensorProximity sensor
- Camera view angleH: 96.67°, V: 123.15°, D: 153.11°
- MicrophoneYes
- Speaker(1) 4 ohm, 1.5W
- LEDsR/G/B/W/Amber
- Button(1) Factory-reset
- NFC frequency13.56 MHz
- NFC read range< 30 mm
- NFC technologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0
- Operating environmentOutdoor use
- Ambient operating temperatureDevice: -30 to 45° C (-22 to 113° F), Display: -10 to 45° C (14 to 113° F) (*Display turns off outside range, but other functions remain active)
- Ambient operating humidity5 to 90% noncondensing
- Software informationSoftware version available at https://unifi.ui.com
- UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 statementCompliance with IEEE 802.3 specifications not verified as part of UL 294. The equipment complies with ANSI/NFPA 70, Article 725.121.
- PoE cabling requirementsMinimum Cat5e recommended, 26 AWG (0.13 mm²) for patch cords, 24 AWG (0.21 mm²) for horizontal/riser cable.
- CAN/ULC-60839-11-1 GradeGrade assignment: I
- CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- LED SystemStatus indicators: Blue (Adopted), White (Pending adoption), White/Blue blinking (Firmware upgrade), Red strobing (Emergency lockdown), Orange (Display temperature out of range)
- UA-G3
- Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight82 g (2.9 oz)
- Enclosure materialPolycarbonate, glass
- Mounting materialAluminum alloy
- MountingIn-wall, gang box
- WeatherproofingIP55
- Networking interface(1) 10/100 MbE RJ45 port
- ConnectivityBLE 4.1, NFC
- Power methodPoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range48V DC
- Max. power consumption5W
- ESD/EMP protectionAir: ±15kV, contact: ±8kV
- SensorsProximity sensor
- Speaker(1) 8 ohm, 0.7W
- LEDsR/G/B/W
- Button(1) Factory-reset
- NFC frequency13.56 MHz
- NFC read range< 30 mm
- NFC technologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0
- Operating environmentOutdoor use
- Ambient operating temperature-30 to 45° C (-22 to 113° F)
- Ambient operating humidity5 to 90% noncondensing
- Software informationSoftware version available at https://unifi.ui.com
- UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 statementCompliance with IEEE 802.3 specifications not verified as part of UL 294. The equipment complies with ANSI/NFPA 70, Article 725.121.
- PoE cabling requirementsMinimum Cat5e recommended, 26 AWG (0.13 mm²) for patch cords, 24 AWG (0.21 mm²) for horizontal/riser cable.
- CAN/ULC-60839-11-1 GradeGrade assignment: I
- CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- UA-Pocket
- Dimensions84 x 39 x 7.4 mm (3.3 x 1.5 x 0.3")
- Weight16 g (0.56 oz)
- Enclosure materialPolycarbonate, stainless steel, silicone rubber
- WeatherproofingIP54
- NFC frequency13.56 MHz
- NFC technologyISO/IEC 14443 Type A, MIFARE DESFire EV3 4K, UniFi Access Proprietary Security Protocol
- Ambient operating temperature-10 to 45° C (14 to 113° F)
- Ambient operating humidity10 to 90% noncondensing
- CertificationCE
Tiekėjo specifikacijos
Category
Access cont
Product code
UBIQUAG3SKPRO
Brand
Ubiquiti
Supplier's product code
UBIQUAG3SKPRO
Product ID
U-4460877
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
